Industrial ETO Sensor 0-100ppm Three Electrode Electrochemical Gas Sensor 0.1ppm Resolution
Product Introduction:
ETO (ethylene oxide) sensor (RS485 type) is a high-performance intelligent detection device designed specifically for industrial gas monitoring. Ethylene oxide, as a toxic and flammable gas widely used in medical device sterilization, food preservation, and chemical synthesis, poses a serious threat to personnel safety and the environment due to its leakage risk. Therefore, real-time and accurate concentration monitoring is a rigid requirement for safe production. This product is based on the principle of electrochemical sensing, combined with a three electrode structure and high-performance microprocessor, which can quickly respond to changes in ETO concentration in the environment. At the same time, it is equipped with a built-in temperature and humidity sensor for real-time compensation, ensuring accurate and reliable data. The equipment adopts standard RS485 interface, supports ModBus RTU protocol, and has a communication distance of up to 2000 meters, making it easy to flexibly network with PLC, DCS and upper computer systems. It is an ideal choice for industrial safety, park environmental protection, warehouse monitoring and other scenarios.
Core advantages:
① Accurate and sensitive measurement capability - range from 0 to 100ppm, resolution of 0.1ppm, data update takes only 1 second, temperature measurement range from -40 to+80 ℃ (accuracy ± 0.3 ℃), humidity from 0 to 99.9% RH, meeting the comprehensive monitoring of multiple parameters in harsh environments.
② Flexible and powerful communication and networking - RS485 bus output, supporting custom ModBus addresses (1~254) and multi level baud rate adjustment (2400~115200 bps), default 9600 bps, can easily achieve multi-point distributed monitoring, and A/B line reverse protection design reduces construction risks.

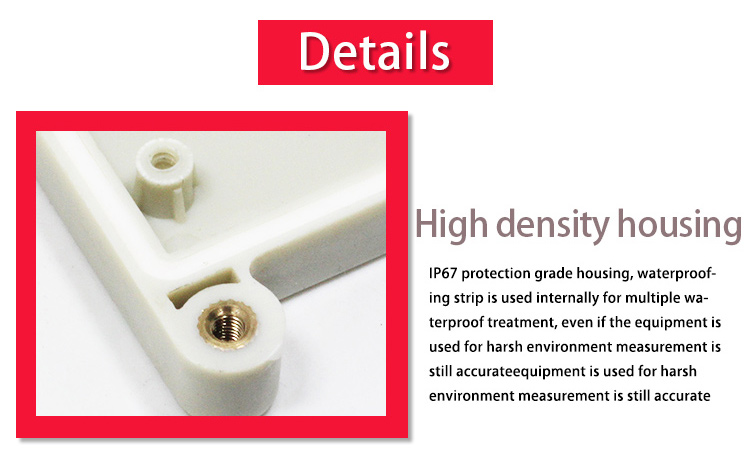

③ Wide voltage power supply and sturdy structure - supports 5-28V DC wide voltage input, suitable for various on-site power supplies; Wall mounted waterproof shell, high protection level, corrosion-resistant, anti-interference, suitable for complex working conditions such as humidity and dust.
④ Convenient calibration and maintenance - supports zero calibration instructions, and can maintain accuracy even after long-term use; The sensor has a lifespan of about 2 years and provides detailed troubleshooting guidelines to reduce operation and maintenance costs. This product has passed strict testing to ensure stable operation in the target gas environment, safeguarding your safety production.
ETO Sensor Specification:
| Power Supply |
5~28VDC |
| Weight |
120g |
| Usage Environment |
Temperature: -20℃～50℃ |
|
Humidity: 15%~ 90% RH without condensation
NOTE: It is not recommended to stay in a high humidity (95%) environment for more than half a month
|
| Measuring Principle |
Electrochemical Principle |
| Range and Accuracy |
ETO: 0-100ppm,0.1ppm |
| Temp.and Humi. Sensor |
Temp Range:-40~+80 ℃ |
| Accuracy:±0.3 ℃ |
| Humi Range:0~99.9 %RH |
| Sensor Lifespan |
< 2 years |
| Data update time |
1s |
Packaging:
Single gross weight: 0.600 KG
Single package size: 23X20X5 cm
Product Description:
Application:
- Medical Device Sterilization Workshop: Real time monitoring of ETO leaks to ensure the safety of operators.
- Chemical production and storage: Flammable and explosive gas warning, in compliance with safety production regulations.
- Environmental monitoring of industrial parks: assessment of air quality at the factory boundary and auxiliary emission control.
- Cold chain logistics and food processing: Control of residual concentration of sterilizing agents to ensure product compliance.
Certifications:
1.We are a leading gas sensor manufacturer and exporter in China, with over 10 years of professional experience in the industry.
2.Our ETO gas sensor products have obtained CE and ROHS certifications, fully meeting international quality and environmental standards.
3.We adopt advanced production technology and strict quality control systems to ensure the high precision, stability and reliability of each ETO gas sensor.
4.Our ETO gas detection solutions are widely applicable to multiple scenarios, including industrial safety monitoring, indoor air quality management and automotive emission testing.
5.Backed by a professional R&D team and comprehensive after-sales service, we have built long-term cooperative relationships with clients from Europe, Asia, the Americas and other regions.
Production Process:
Why choose us:
1. Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
2. Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
3. Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
4. Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
5. Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
|
|
Industrial ETO Sensor 0-100ppm Three Electrode Electrochemical Gas Sensor 0.1ppm Resolution Images
|
